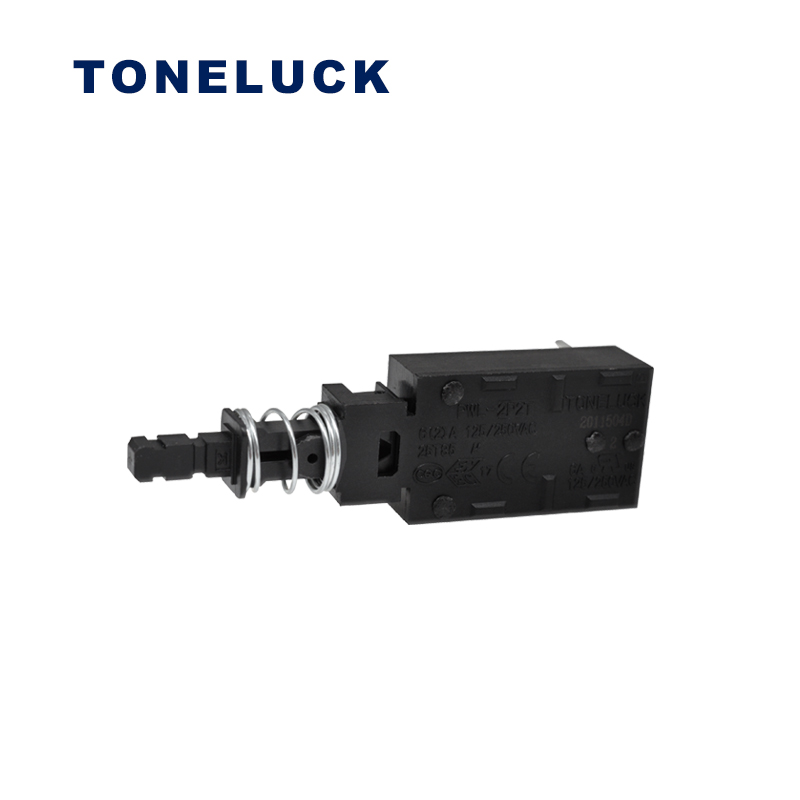

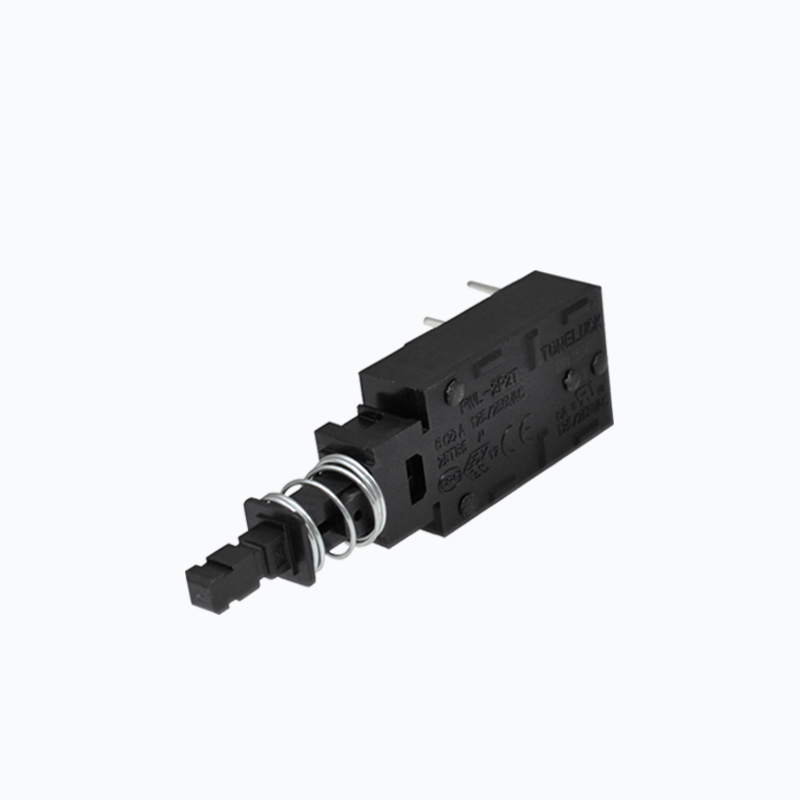

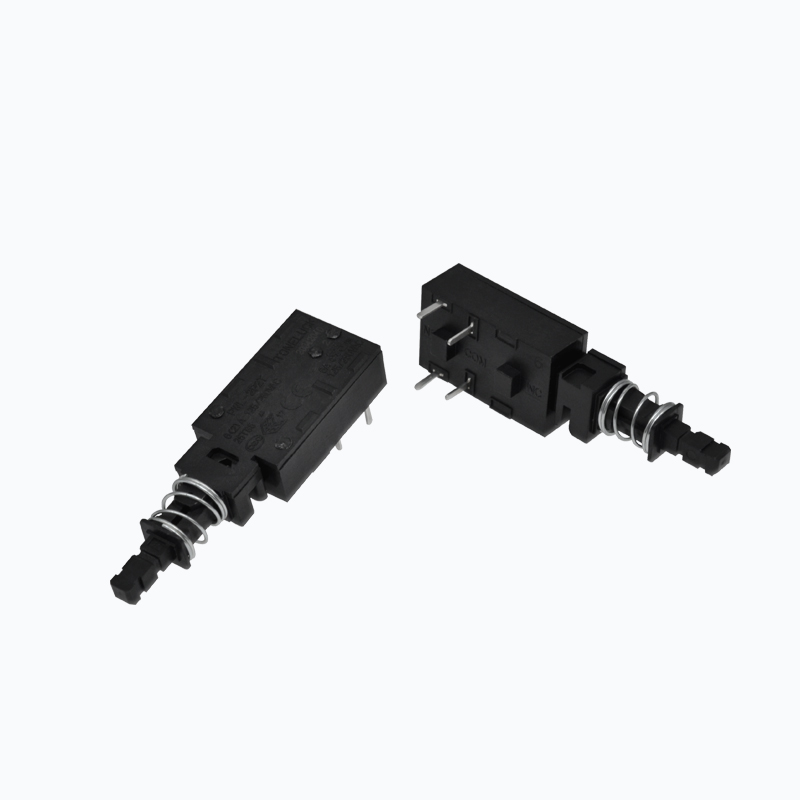

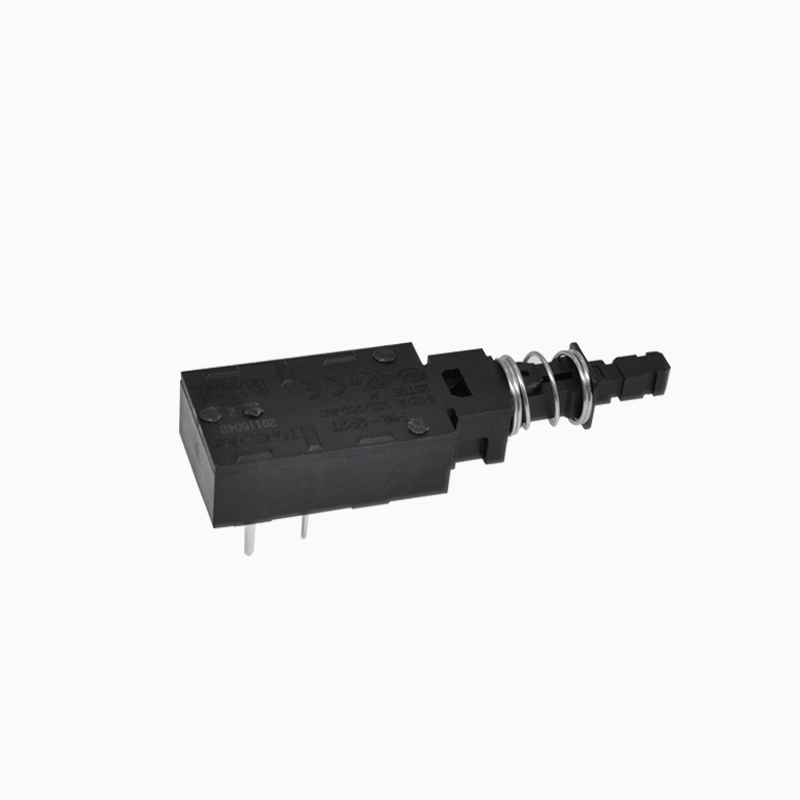

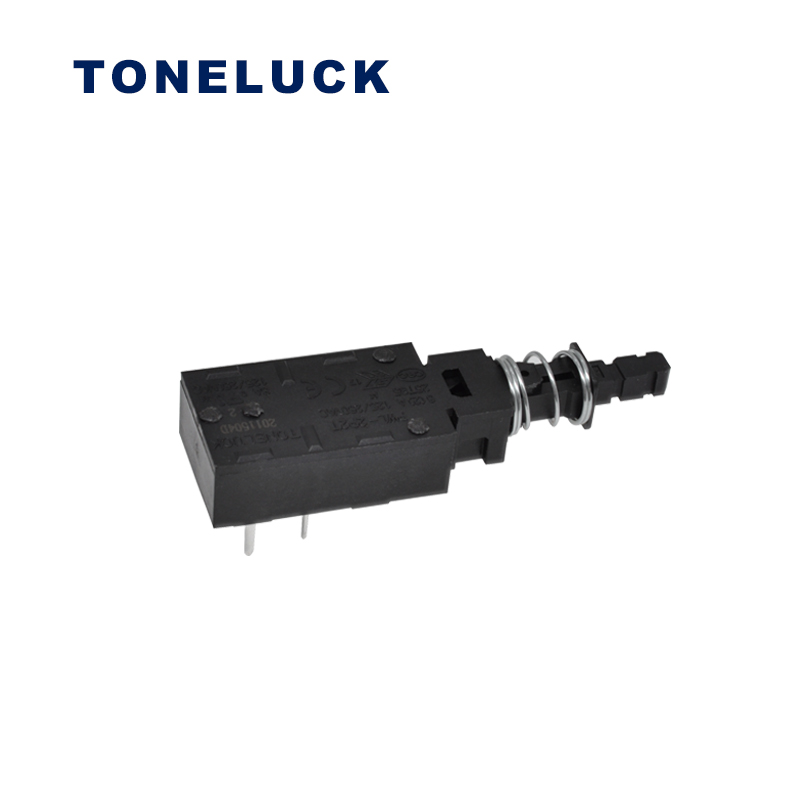

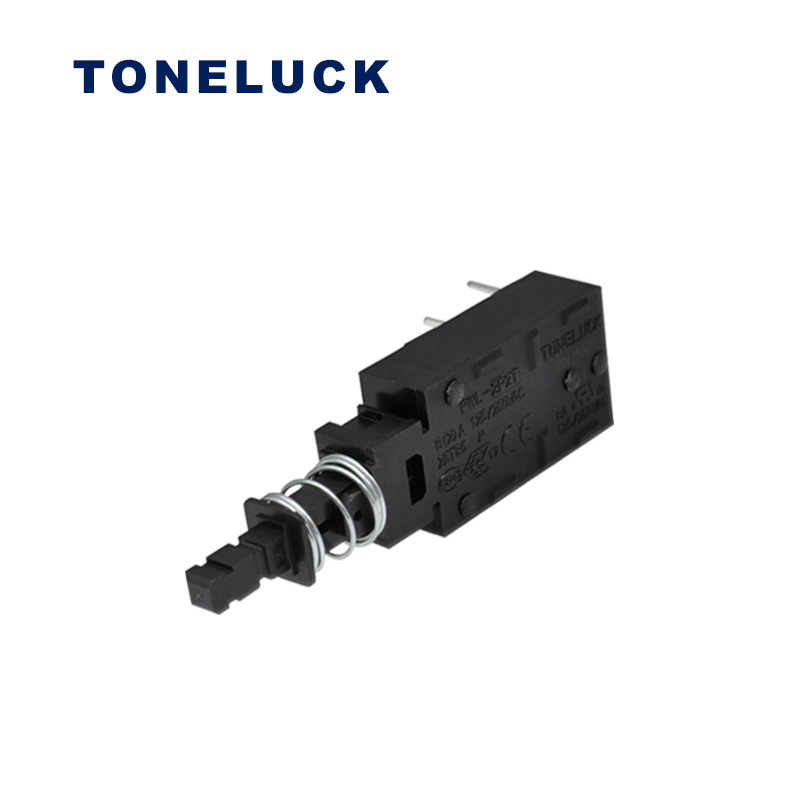

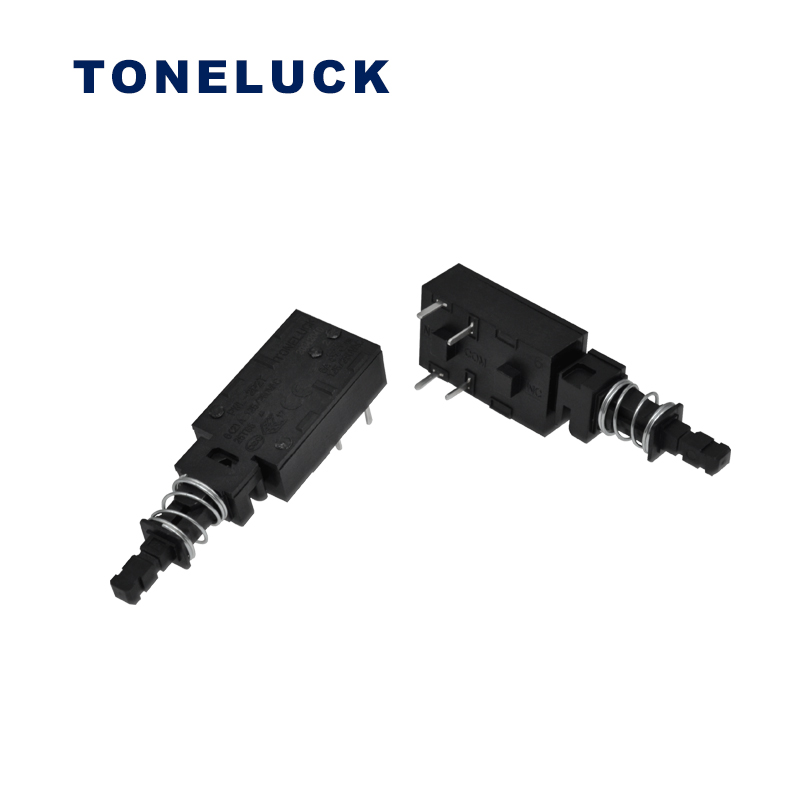

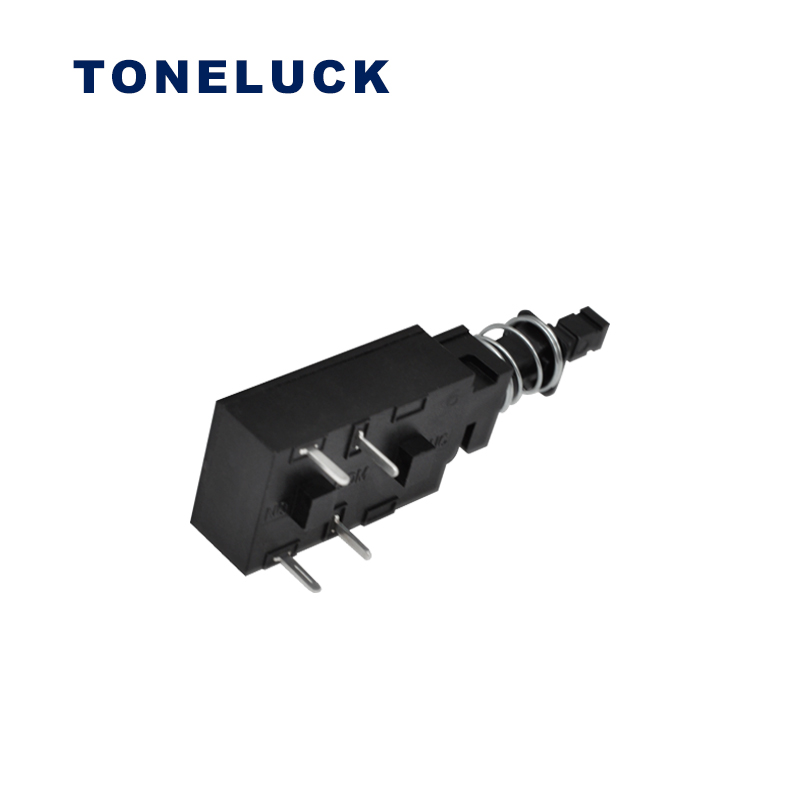

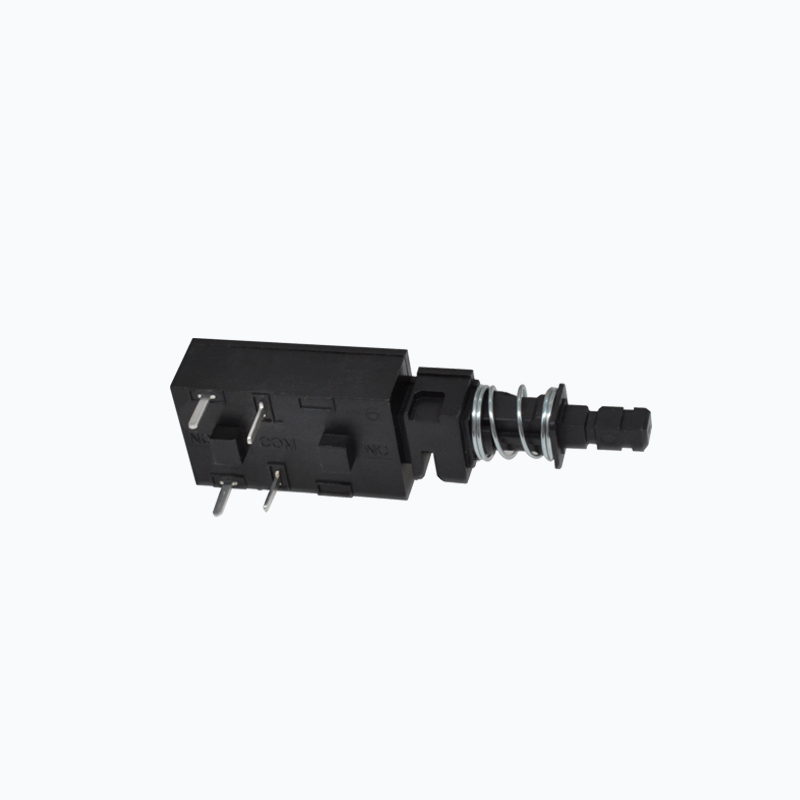

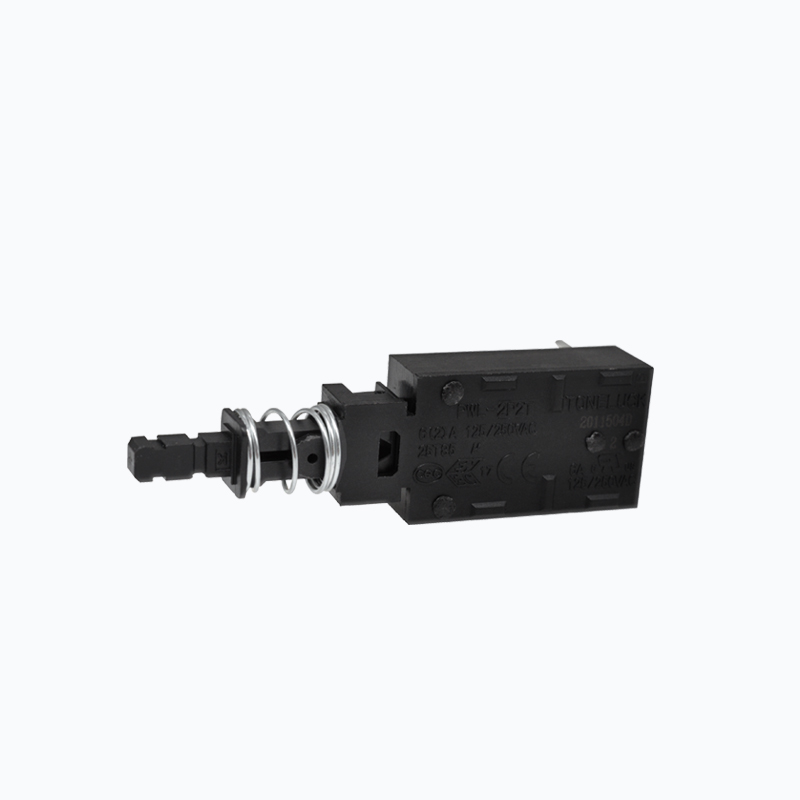

惠達廠家供應PWL-2P1TL電源開關 PCB按鍵開關家用電器直鍵開關

開關型號: PWL-2P1TL-6SBPTA

...................................................................................................................................

機械壽命 : 10,000 次

...................................................................................................................................

接觸電阻: 50m Ω max.initial

...................................................................................................................................

絕緣電阻: 100 MΩ min.

...................................................................................................................................

抗電強度: 500VAC for 60+/-5 sec

...................................................................................................................................

外殼材料: UL 94V-0 Thermoplastic

...................................................................................................................................

咨詢熱線: 13510098397（微信同號）

...................................................................................................................................

下載說明書

產品詳情

PWL系列電源開關 —— Power Switch

TONELUCK 廠家直銷微動開關 / 按鍵開關 / 電源開關 / 門開關 / 旋轉開關 / 壓力開關 / 汽車控制系統連接器

更多產品詳情——?請關注1688阿里旗艦店（點擊直達入口）

.............................................................................................................................................................................................

廣泛應用于：精密儀器儀表、工業設備、家用電器等.....

產品類型

額定負載

環境溫度

操作力

按帽

PWL-2P2T

6A 125/250VAC

>10,000 cycles

-25oC ~ +85oC

560 +/- 150gf

650 +/- 150gf

800 +/-150gf

BF series caps

BC series caps
